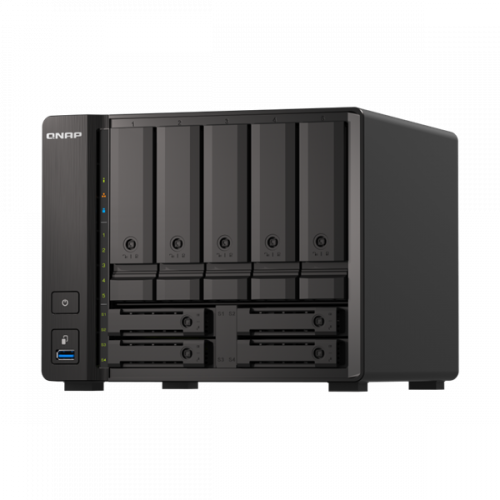

QNAP NAS 9 fiókos TS-h973AX-8G XEON 4x2,2GHz, 1x8GB RAM, 2x2.5G/1G/100M, 1x10GBASE-T (10G/5G/2.5G/1G/100M)
2-3 Hét
Klikk a galériához
Nincs raktáron
A termék nincs raktáron, a beszerzési idő és az ár(!) módosulhat! Erről mindenképp e-mailben küldünk pontos tájékoztatást. Javasoljuk a raktáron lévő termékek vásárlását!
| CPU | AMD Ryzen™ Embedded V1500B quad-core eight threads 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB SO-DIMM DDR4 (1 x 8 GB) |
| Maximum Memory | 32 GB (2 x 16 GB) |
| Memory Slot | 2 x SO-DIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 5 x 3.5-inch + 4 x 2.5-inch
The system is shipped without HDD/SSD.
For the HDD/SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen3 x4 solid state drives (2.5-inch Bay #1 & #2) * 2.5-inch bay #1 & #2 support either U.2 NVMe SSDs or SATA 6Gb/s SSDs.
** U.2 NVMe solid-state drives can only be installed in 2.5-inch bay numbers 1 and 2. Installing these drives in other bays will damage the drive connectors. |
| Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via the QNA-UC5G1T USB to 5GbE network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Jumbo Frame | Yes |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 3 x Type-A USB 3.2 Gen 2 |
| Form Factor | Tower |
| LED Indicators | HDD 1-5, SSD 1-4, Power/Status, LAN, USB |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 182,65 × 224,6 × 224,1 mm |
| Weight (Net) | 3.52 kg |
| Weight (Gross) | 5.12 kg |
| Operating temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | External, 120 W, AC 100 to 240 V |
| Power Consumption: HDD Sleep Mode | 41.2 W |
| Power Consumption: Operating Mode, Typical | 55.41 W
Tested with drives fully populated.
|
| Fan | 1 x 140mm, 12VDC |
| Sound Level | 22.9 db(A) |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
Megjegyzés: kizárólag QNAP memória modulokat használj a rend
